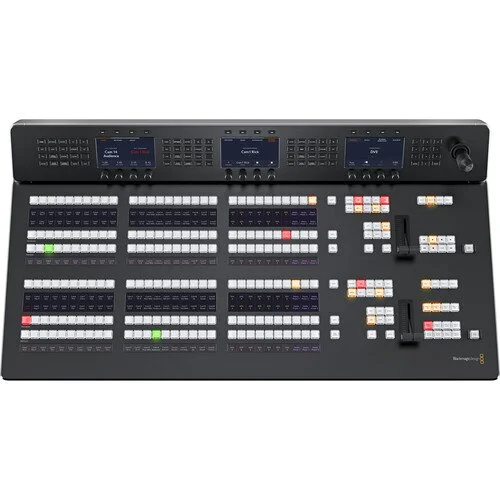

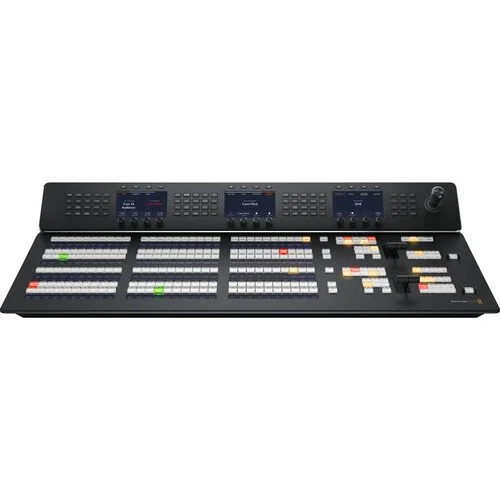

Blackmagic Design ATEM 2 M/E Advanced Panel 30
Key Features
Panel for ATEM Constellation Switcher
2 x M/E Rows, 30 x Input Buttons Each
3 x System Control LCDs for Each Row
High-Quality Buttons/Knobs/Controls
4 x GbE Ethernet Ports with Loopouts
Custom Labeling, Redundant Power Supply
12 On-Air Indicators, 30 Cross-Points
3-Axis Joystick, Keypad, 2 x Fader Bars
USB Type-C Input for Firmware Updates
Key Features
Panel for ATEM Constellation Switcher
2 x M/E Rows, 30 x Input Buttons Each
3 x System Control LCDs for Each Row
High-Quality Buttons/Knobs/Controls
4 x GbE Ethernet Ports with Loopouts
Custom Labeling, Redundant Power Supply
12 On-Air Indicators, 30 Cross-Points
3-Axis Joystick, Keypad, 2 x Fader Bars
USB Type-C Input for Firmware Updates
Key Features
Panel for ATEM Constellation Switcher
2 x M/E Rows, 30 x Input Buttons Each
3 x System Control LCDs for Each Row
High-Quality Buttons/Knobs/Controls
4 x GbE Ethernet Ports with Loopouts
Custom Labeling, Redundant Power Supply
12 On-Air Indicators, 30 Cross-Points
3-Axis Joystick, Keypad, 2 x Fader Bars
USB Type-C Input for Firmware Updates
The ATEM 2 M/E Advanced Panel 30 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design. Use the numerous buttons, knobs, two fader bars, and a 3-axis joystick to customize your panel's program/preview operation.
Applications
Designed for complex live productions, the ATEM 2 M/E Advanced Panel 30 enables you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and 12 on-air indicators. The ATEM 2 M/E Advanced Panel 30 connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.
Compatibility
Provides pro switching controls for the ATEM Constellation HD line of switchers
Interface
Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
USB Type-C for firmware updates
Cross-Points
Tri-color LED cross-point buttons; 30 direct cross-points, and 60 shifted cross-points
Mix Effect Rows
Two M/E rows, 30 input buttons per row
LCD Menu Displays
Three system control LCDs for each row with custom labeling for all rows and input buttons
Controls
One 3-axis joystick, one numeric keypad, and two fader bars
On-Air Indicators
12 indicators let you easily see which feeds are on air
DSK Selectors
Four transition previews with auto, cut, and tie/preview options
Items Included
Blackmagic Design ATEM 2 M/E Advanced Panel 30
Limited 1-Year Manufacturer Warranty
Not Included
Essential Required Power Cable
