Vehicle Specs

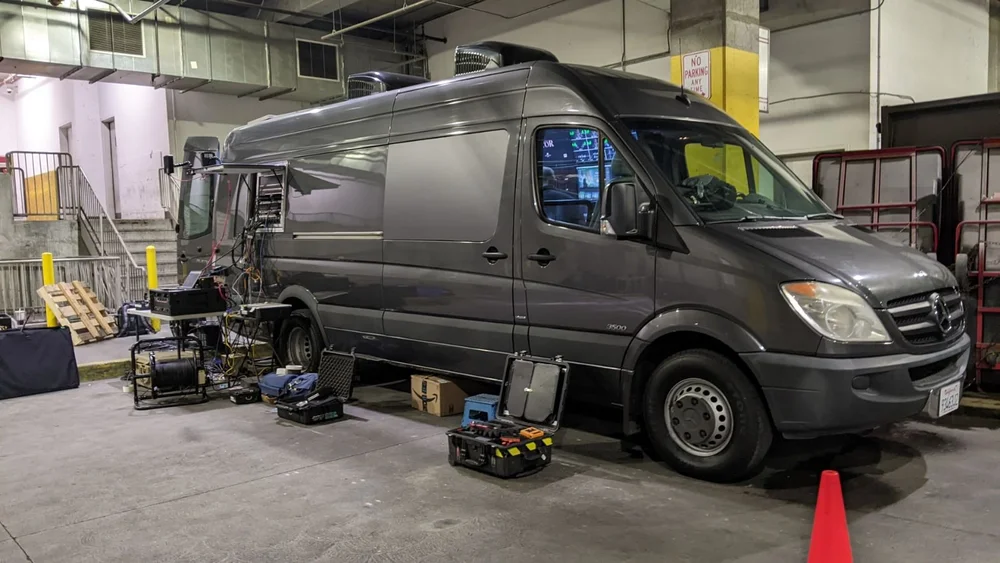

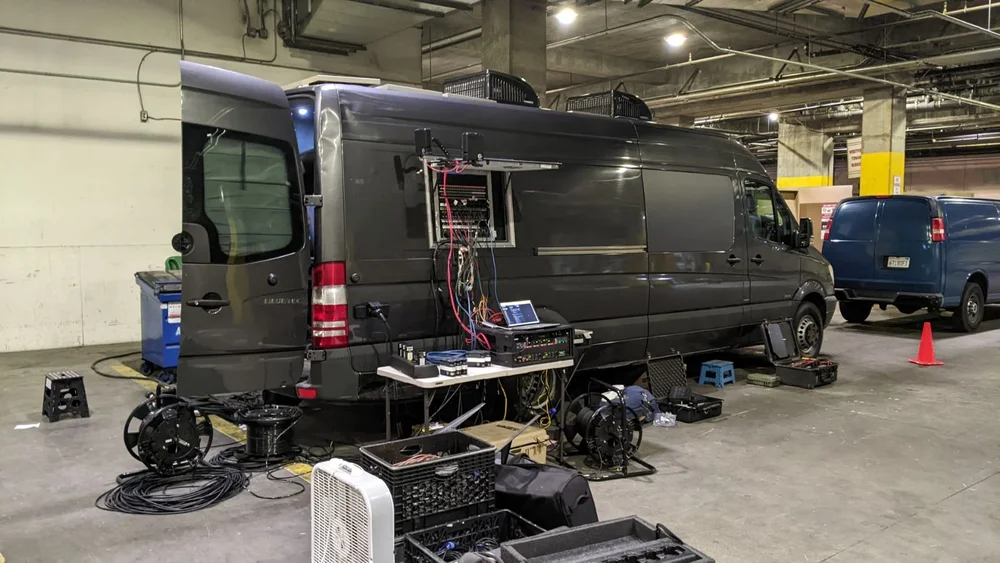

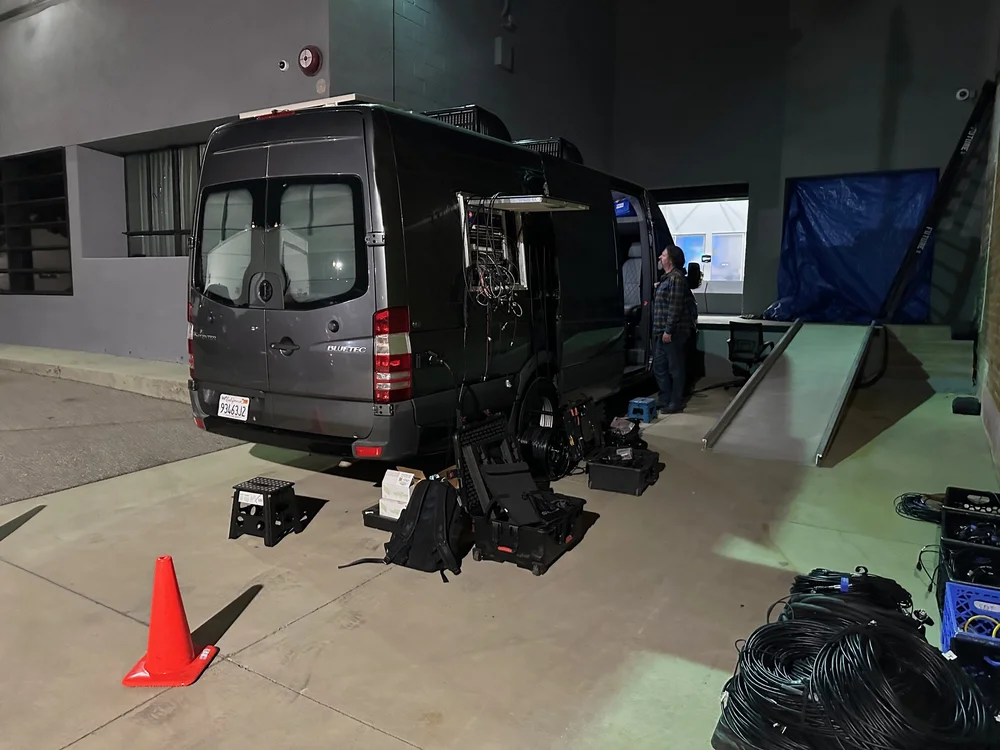

● Mercedes Sprinter 3500 170 extended diesel
● 60 amp Cam-Lock shore power.
● Shore power: 120 VAC, 3-pole, 4-wire. Actual draw 30 A per leg, 60 A total.
● Length 274.3” x width 80" x height 108.7"
Production
● Blackmagic ATEM Constellation 8K 4 M/E
● 2-stripe ATEM advanced 2ME control panel 20
Communications
● Studio Technologies Model 5422 32-channel Dante Intercom Engine
● 5x Glensound Beatrice Dante 4-channel coms panels
● 4x Studio Technologies 2-channel beltpacks
● 9 lightweight headsets
● 5 David Clark double muff headsets
● 3 David Clark single muff headsets
● Up to 32 4-wire ties

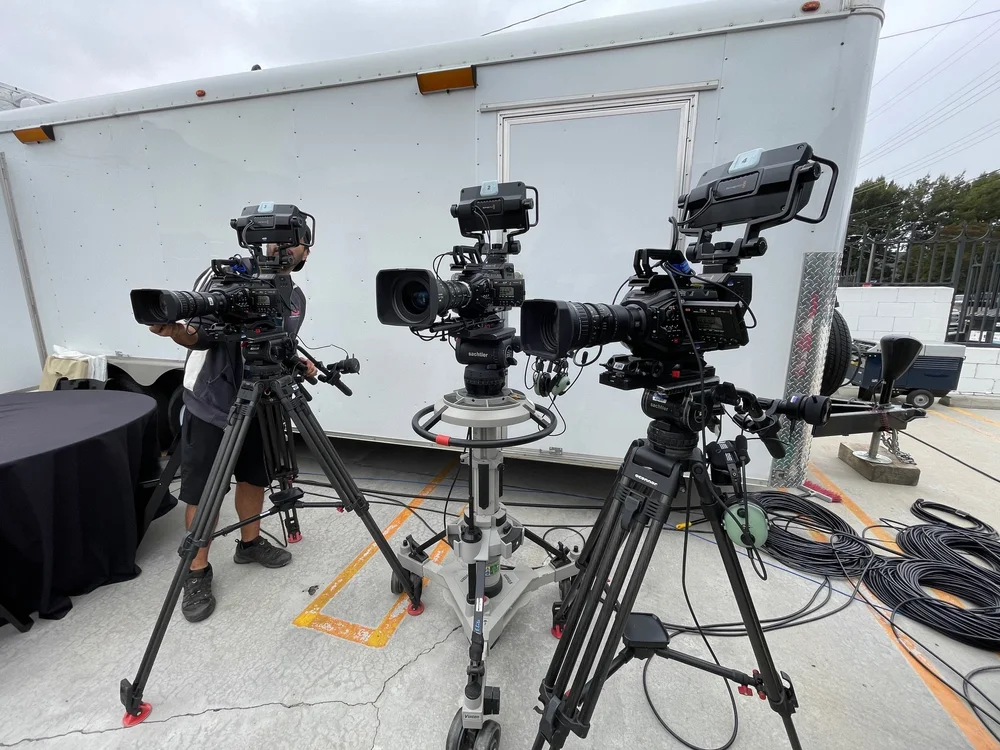

Cameras
● Wired for 8 Blackmagic URSA Broadcast G2 CCUs
● Up to 5x 7” Studio VFs
● Up to 3x handheld VFs
● Blackmagic Camera Control Panel
Camera Support
● Sachtler V20 tripods
● Vinten pedestals available
Lenses
● 4 Fujinon 16x 4K (LA16x8BRM-XB1A)
● 5 Fujinon 20x 4K (XA20SX8.5BERM)
● Cinema lenses available
Support Equipment
● Blackmagic Videohub 80x80 12G router
● UHD video (baseband): 80x80
● UHD video (single mode fiber): 4x4
● Embed/de-embed: 4x 12G SDI to/from Dante or MADI
● Elgato Stream Deck Studio control panels
● Monitors: 4x 31” Boland 4K HDR, 2x 32” Boland HD, Boland 16” HDR OLED
● 4 multiviewer heads, max 64 windows
Audio
● Midas M32C audio console with Dante interface
● Glensound DARK1616M Dante mic/line interface
● Yamaha Rio Dante interface (portable)
● 2 Genelec 8010
● Genelec 7040A sub
● 2 Genelec 8020
● Microphones dependent on project

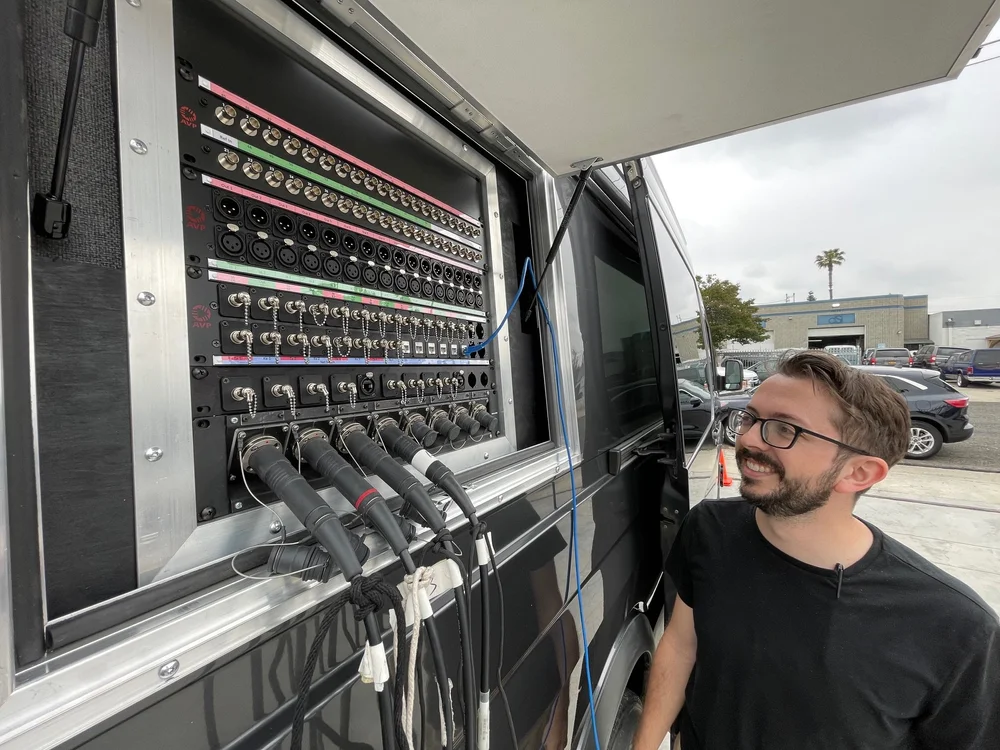

● 32x32 analog audio IO; line, mic or AES3
Record and Playback
● Wired for 10 record/playback decks
● Blackmagic Hyperdeck Studio 4K decks
● vMix 4K server with 4 configurable inputs/outputs
● NewTek 3Play 3P1 4-channel replay with control surface
● 3 channel Xpression available*
● 2 ch** RTMP/SRT encoder
● vMix 4K encoder with 2 stream outputs
Networking
● Peplink Transit Duo bonded cellular router
● 4 Netgear M4250 series AV switches, PoE++ switches available
● Throw down gigabit media converters
Cables
● 5x 100M SMPTE
● 5x 150M SMPTE
● 1000 ft TAC12
● 500 ft TAC6
● 12G-SDI cable
● XLR cable and snakes
● CAT5e and CAT6 cable
Due to the nature of camera possibilities we bid job based on cameras, mounts, lenses etc. So anything listed above can be customized.
Fastest answer on availability: 818-593-0907
